| Parameter | Value | Unit |
|---|---|---|
| Model | CTB125 | — |
| Carrier Weight | 15 – 18 (30000 – 36000) | TON (LB) |
| Blow Rate | 350 – 650 | BPM |
| Impact Energy | 2000 | FT.LB |
| Operating Weight | 3147 | LB |
| Tool Diameter | 125 (4.92) | MM (IN) |
| Oil Flow | 23.8 – 31.7 | GPM |
| Operating Pressure | 2133 – 2417 | PSI |
| Setting Pressure | 3000 | PSI |
| Hose Diameter | 1 | IN |

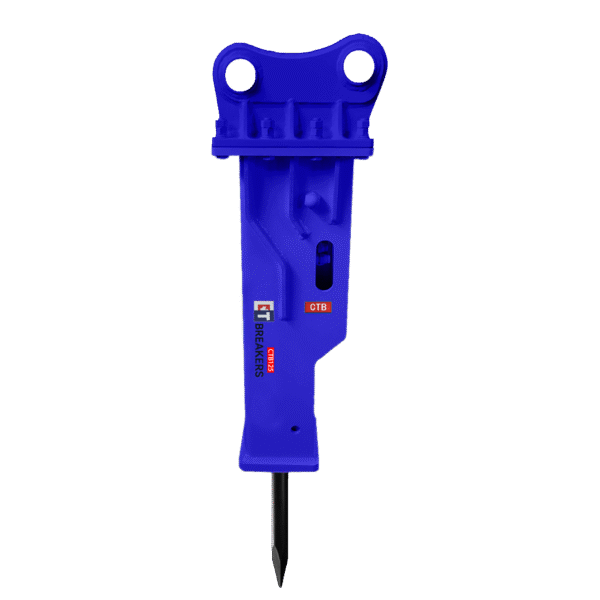

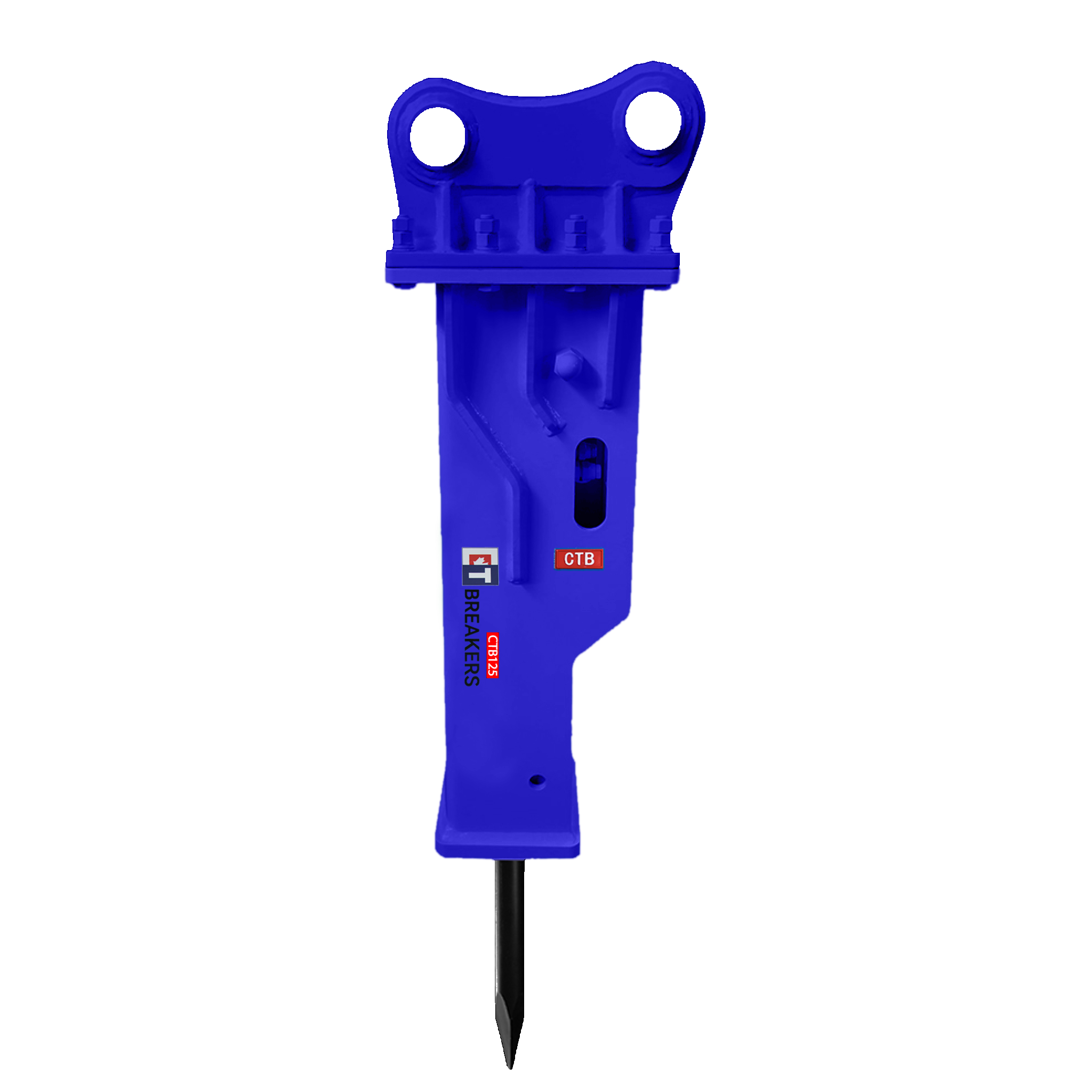

CTB125 Hydraulic Breaker – Friendly Overview:
The CTB125 is built tough for carriers weighing between 15 and 18 tons (or 30,000 to 36,000 pounds). It’s made to handle the heavy-duty jobs where real power is needed.
It delivers a steady 350 to 650 hits per minute, giving you smooth, reliable breaking power. Each hit packs a strong 2000 foot-pounds of impact energy, so it’s ready to crush through hard rock, concrete, and other tough materials without breaking a sweat.
