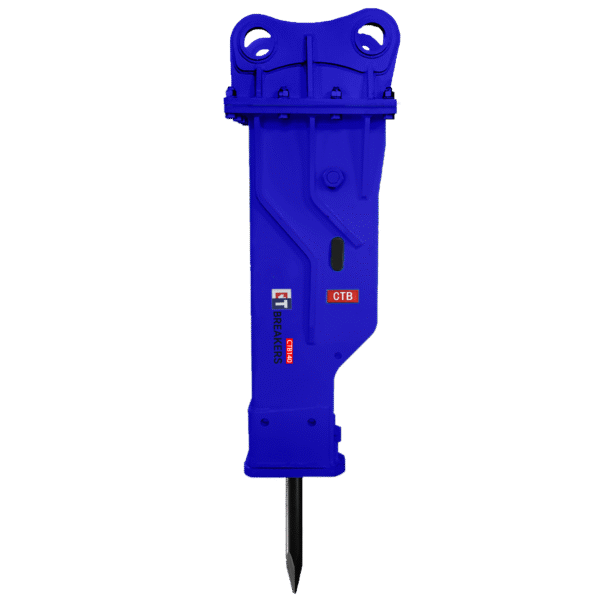

Breaker CTB140

Specifications

Parameter	Value	Unit
Model	CTB140	—
Carrier Weight	18 – 26 (36000 – 52000)	TON (LB)
Blow Rate	350 – 500	BPM
Impact Energy	3000	FT.LB
Operating Weight	4361	LB
Tool Diameter	140 (5.51)	MM (IN)
Oil Flow	31.7 – 47.6	GPM
Operating Pressure	2275 – 2559	PSI
Setting Pressure	3300	PSI
Hose Diameter	1	IN

CTB140 Hydraulic Breaker:

The CTB140 is designed for carriers weighing between 18 and 26 tons (or 36,000 to 52,000 pounds). It’s a robust and powerful breaker built for the heaviest demolition and construction work.

Operating at a blow rate of 350 to 500 hits per minute, it provides steady, controlled impact force. With an impressive 3000 foot-pounds of impact energy, this breaker can easily handle the toughest materials like thick concrete and solid rock.
