| Parameter | Value | Unit |
|---|---|---|
| Model | CTB53 | — |
| Carrier Weight | 2.5 – 4.5 (5000 – 9000) | Ton (LB) |
| Blow Rate | 600 – 1100 | BPM |
| Impact Energy | 300 | FT.LB |
| Operating Weight | 370 | LB |
| Tool Diameter | 53 (2.09) | MM (IN) |
| Oil Flow | 6.6 – 13.2 | GPM |
| Operating Pressure | 1305 – 1740 | PSI |
| Setting Pressure | 2176 | PSI |
| Hose Diameter | 1/2 | IN |

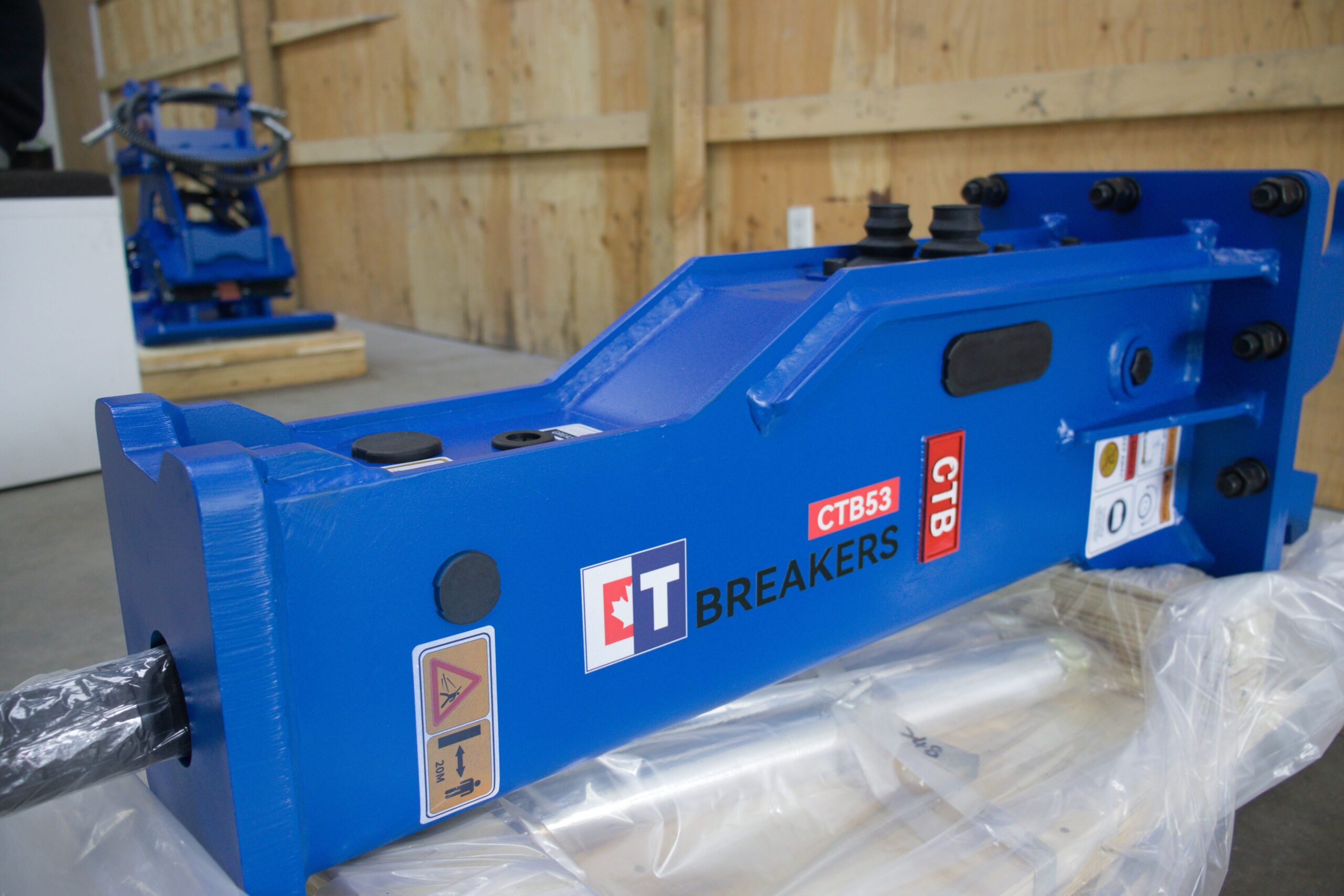

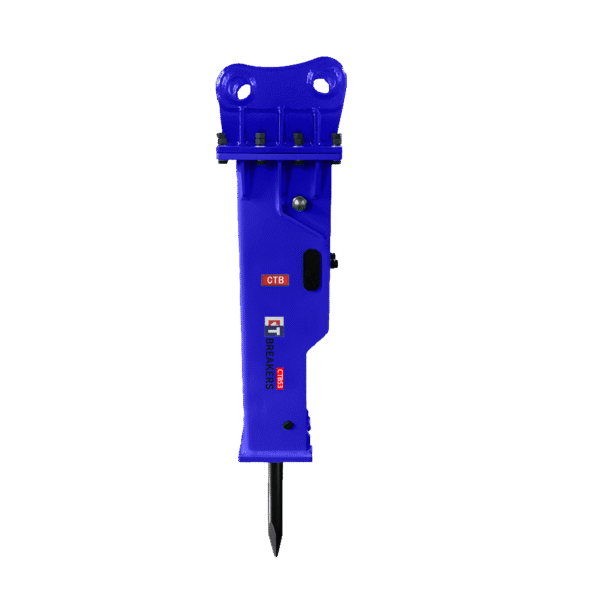

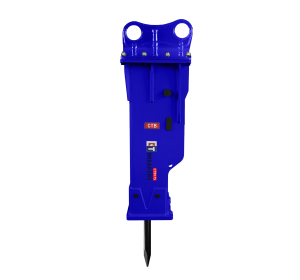

The CTB53 Hydraulic Breaker is a compact yet powerful attachment engineered for mini to mid-sized excavators in the 2.5 to 4.5-ton range. Weighing just 168 kg, it offers a perfect balance of performance and portability, making it ideal for a wide variety of construction, demolition, and excavation applications.
Powered by a hydraulic system requiring 25–50 liters per minute of oil flow, the CTB53 operates at an optimal pressure range of 90 to 120 bar, with a preset setting pressure of 150 bar. It delivers a substantial impact energy of 406 joules, and performs at an impact rate of 600–1100 blows per minute (BPM), ensuring efficient breaking power in tough conditions.
