| Parameter | Value | Unit |
|---|---|---|
| Model | CTB210 | — |
| Carrier Weight | 60 – 80 (120000 – 160000) | TON (LB) |
| Blow Rate | 150 – 200 | BPM |
| Impact Energy | 15750 | FT.LB |
| Operating Weight | 13682 | LB |
| Tool Diameter | 210 (8.27) | MM (IN) |
| Oil Flow | 76.6 – 92.5 | GPM |
| Operating Pressure | 2844 – 3413 | PSI |
| Setting Pressure | 4500 | PSI |
| Hose Diameter | 310 | IN |

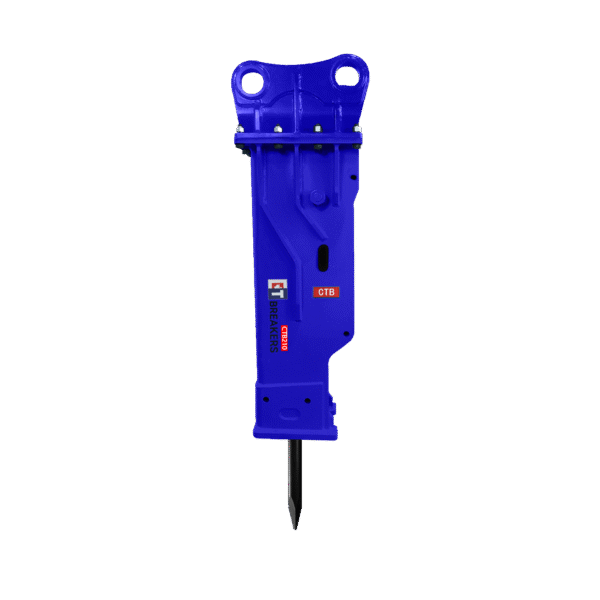

The CTB210 is a massive and powerful breaker, built for the biggest machines out there — suitable for carriers weighing between 60 to 80 tons (or 120,000 to 160,000 pounds). If you need to take on massive demolition or mining work, this is your go-to solution.
With a blow rate of 150 to 200 BPM, this breaker might not be the fastest, but every strike hits hard — delivering an incredible 15,750 foot-pounds of impact energy. It’s designed for deep, heavy strikes to break apart the toughest materials on the job site.
