Breaker CTB68

Model: CTB68
Part Name: Breaker

SPECIFICATIONS

Parameter Value Unit
Model CTB68
Carrier Weight 4 – 7 (8800 – 15400) Ton (LB)
Blow Rate 500 – 900 BPM
Impact Energy 500 FT.LB
Operating Weight 717 LB
Tool Diameter 68 (2.68) MM (IN)
Oil Flow 10.6 – 18.5 GPM
Operating Pressure 1564 – 1990 PSI
Setting Pressure 2450 PSI
Hose Diameter 1/2 IN

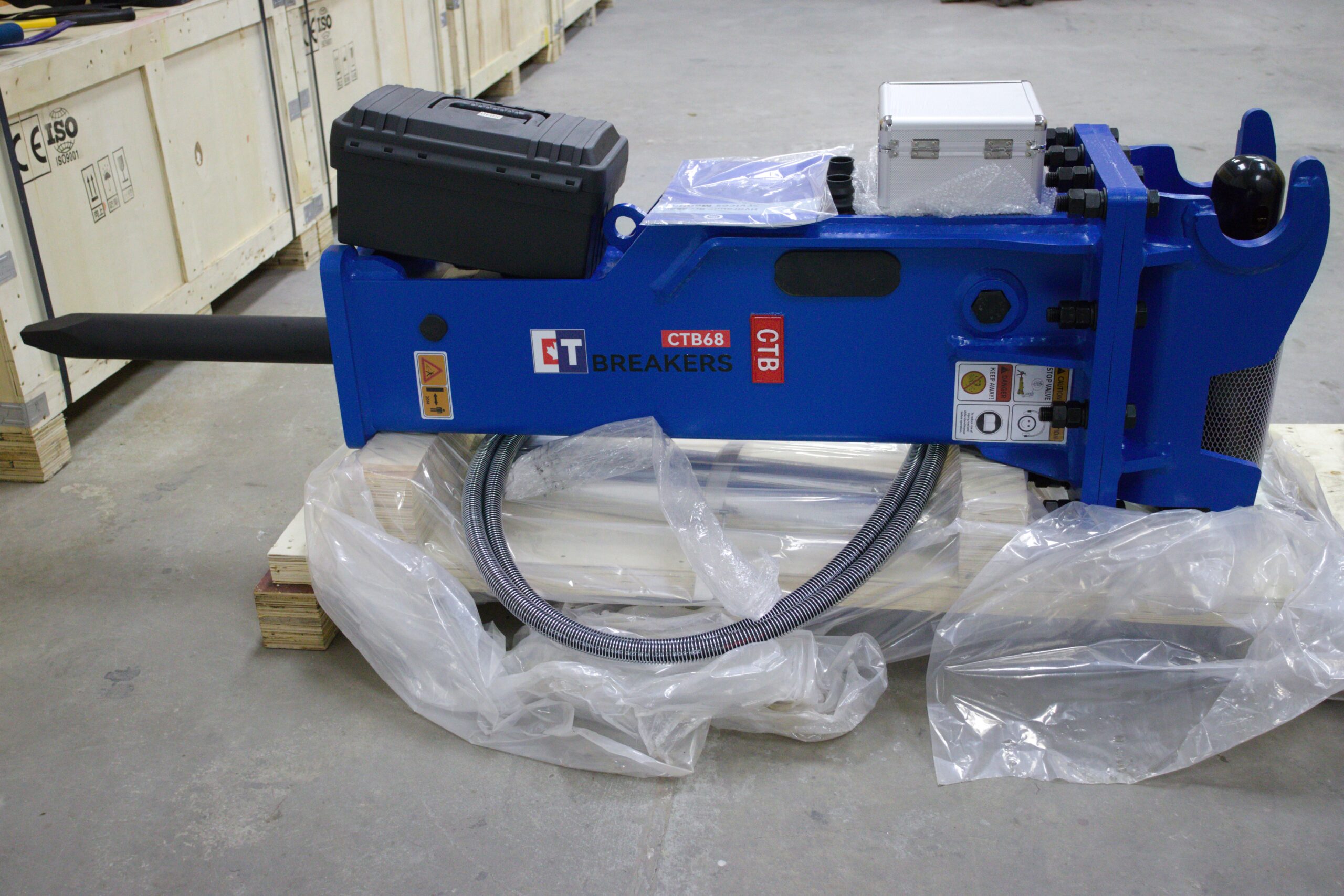

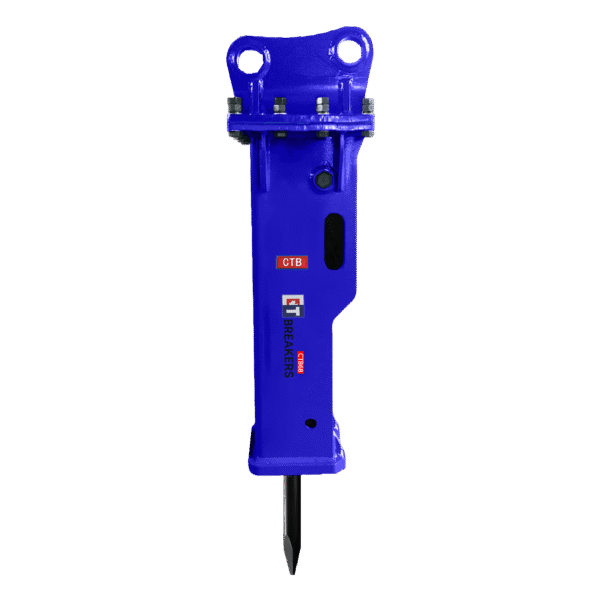

CTB68 Hydraulic Breaker – For 4–7 Ton Excavators

The CTB68 hydraulic breaker is a powerful and reliable attachment designed specifically for 4 to 7-ton excavators. Engineered to handle demanding construction, demolition, and trenching tasks, this breaker offers exceptional impact energy and durability. With an operating weight of 325 kg, it is compact yet strong enough to break through tough surfaces such as concrete, rocks, and asphalt with ease.

Related Product

1000_F_321411435_294H34Tx52o2JDCn783ai3uzc5OCuBln

Breaker CTB175

1000_F_321411435_294H34Tx52o2JDCn783ai3uzc5OCuBln

Breaker CTB165

1000_F_321411435_294H34Tx52o2JDCn783ai3uzc5OCuBln

Breaker CTB155

1000_F_321411435_294H34Tx52o2JDCn783ai3uzc5OCuBln

Breakers CTB85

1000_F_321411435_294H34Tx52o2JDCn783ai3uzc5OCuBln

Breaker CTB75

IMG_0767

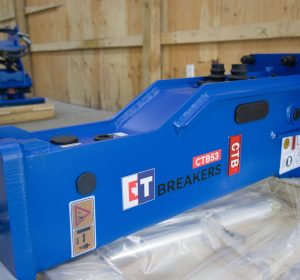

Breaker CTB53
